Product Information
Device Information and Settings
| Device Information | Schlage RC | ||
|---|---|---|---|
| Overview | The Schlage RC wall mount is a next generation IP reader controller designed for scalable and flexible real-time access control in perimeter and high security applications | ||
| Submodels | RC11 |
RC15 |
RCK15 |
| Applications | Perimeter Exits, Amenity Spaces, Common Areas, Enrollment Reader |  |
|
| Operating Mode | Online / Real time | ||
| Supports ResKey NFC Credentials | Yes | ||
| Support Zentra BLE Credentials | Yes | ||
| Number of Schedules Supported | 16 | ||

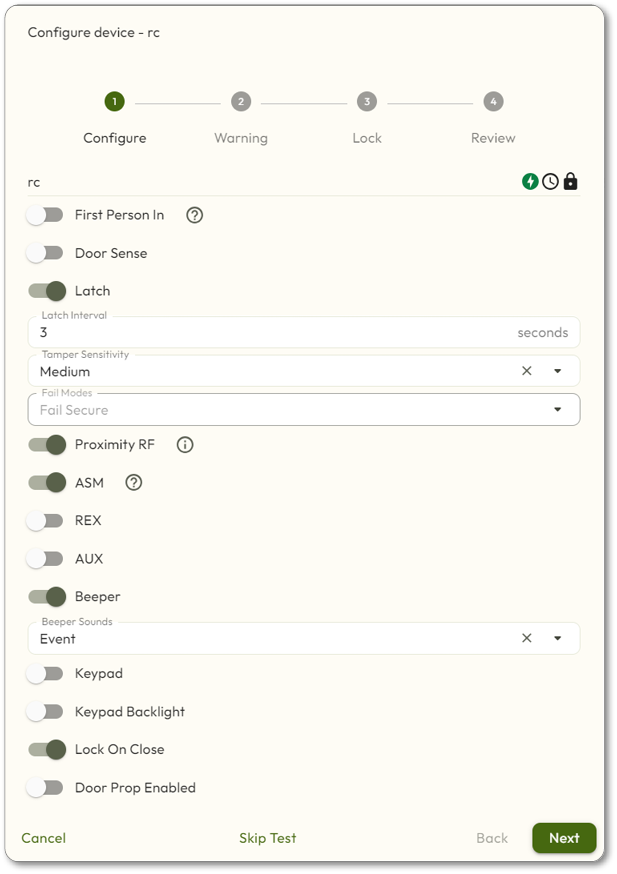

| Setting | Description | Contingencies | Options (Default) |
|---|---|---|---|
| First Person In | Guarantees that at least one person is present when the door is open. | Works with AutoUnlock Schedules. | On: lock will remain locked until a user presents a credential to open the door. The lock will then stay unlocked until the end of the AutoUnlock period. (Off): lock will unlock at the set unlock time. |
| Door Sense (DPS: Door position sensor) | Senses whether the door is open or closed. | Physical DPS must be installed. | On: monitor the door status (Off): do not monitor the door status |
| Door Sense Input Type | Set to match the normal state of the door. | Door Sense must be On. | Normally Open: Active Low (Normally Closed): Active High |
| Latch | Set to match whether a physical latch is present or not. | Physical latch must be installed. | (On): Latch is installed Off: Latch is not installed |
| Latch Interval | Number of seconds before the latch relocks after unlocking. | Latch must be On. | Number of seconds, 1-30 (3) |
| Tamper Sensitivity | Level of sensitivity that triggers a tamper event. | Low (Medium) High |
|
| Fail Modes | Defines what the device should do when experiencing a power failure. Fail Safe should be used when free egress is necessary. Fail Secure should be used for high security applications. | Automatically set to Fail Secure if ASM is enabled, and cannot be changed. | (Fail Safe): device will move to unlocked state during power failure Fail Secure: device will move to locked state during power failure |
| Proximity RF | Toggle whether proximity credentials will be read or not. | (On): Proximity credentials will be read Off: Proximity credentials will not be read |
|
| ASM (Advanced Security Module) | ASM must be paired and the TESTING Wizard must be completed to test the latch. | Fail Mode will be set to Fail Secure. | On: ASM is associated (Off): ASM is not associated |
| REX (Request for Exit) | Request to Exit output to strike/maglock. | REX device must be physically present. | On: REX output will be triggered (Off): REX output will not be triggered |
| REX Input Type | Set to match the normal state of the door. | REX must be On. | (Normally closed): door is normally closed Normally open: door is normally open |
| AUX (Auxiliary Input) | Toggle on to use AUX output. Used to trigger additional events when credential is read. | AUX device must be physically present. | On: AUX output will be triggered (Off): AUX output will not be triggered |
| AUX Input Type | Set to match the normal state of the door. | AUX Must be On. | (Normally closed): door is normally closed Normally open: door is normally open |
| AUX (Event) | Event that should occur when AUX is activated. | AUX Must be On. | Admit: Device will move to unlocked state when AUX is activated. (Report Only): Device will only report that AUX was activated. |
| Beeper | Toggle whether the beeper should sound or not | (On): the lock beeper will sound. Off: the lock beeper will not sound. |
|
| Beeper Sounds | Indicate which event should cause the lock beeper to sound. | Beeper must be On. | Event: beeper will sound for all events besides tamper Tamper Event: beeper will sound for tamper events (Event, Tamper Event) |
| Keypad | Toggle whether the device has a keypad or not. | Physical device must have a keypad (RCK15 Model). | (On): the physical device has a keypad Off: the physical device does not have a keypad |
| Keypad Backlight | Toggle whether the keypad backlight is on or off. | Keypad must be On. | (On): backlight is on Off: backlight is off |
| Keypad Backlight Timeout | Indicate how long the keypad backlight should remain lit after user input. | Keypad must be On. Keypad backlight must be On. |
Number of seconds, 1-15 (3) |
| Lock On Close | Toggle whether the door should lock when it is closed or not. | Door Sense must be On. | (On): lock will automatically move to locked state when closed Off: lock will not automatically move to locked state when closed |
| Door Prop Enabled | Toggle whether a door prop event should be generated when the door is propped open. | Door Sense must be On. Works with Door Prop Delay. |
On: a door prop event will be generated when the door prop delay time is met (Off): no door prop event will be generated |
| Door Prop Delay | The amount of time before a door prop event is generated. | Door Sense must be On. Door Prop Enabled must be On. |
Number of seconds, 1-255 (20) |
